[Introdution]

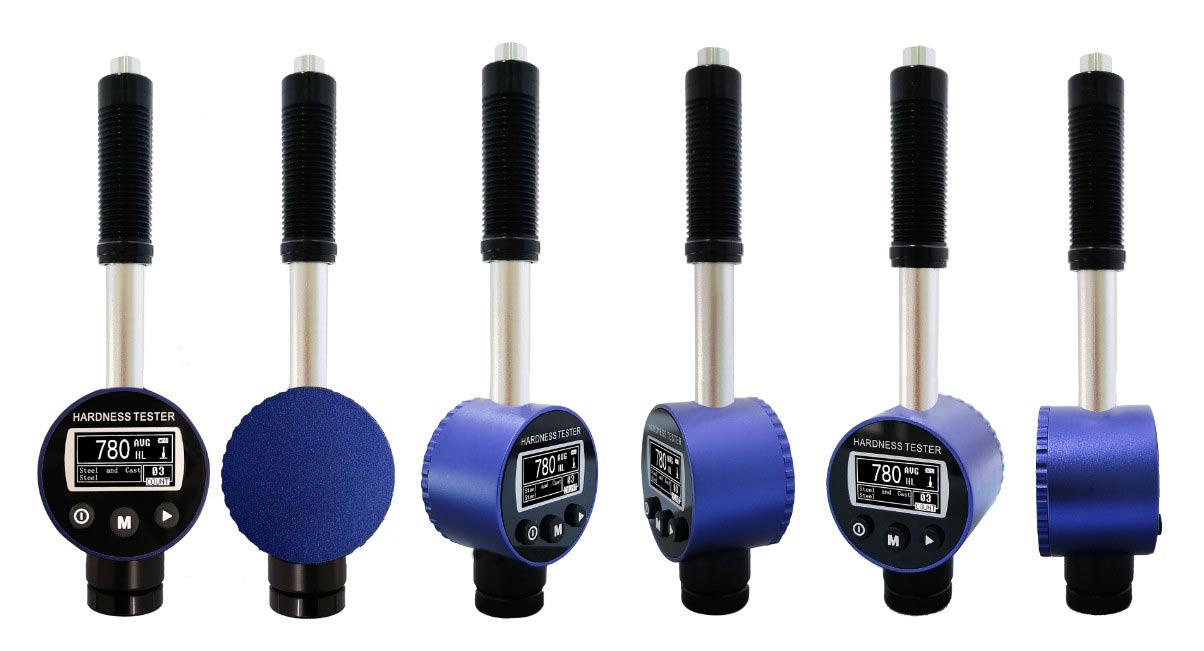

TH103D portable hardness tester can directly measure different types of hardness value including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with international standards it's also can meet the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards which are issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.
With low-power design and Large capacity button battery which can achieve long standby time work it has more compact and flexible design increases user flexibility.
[Features]
l All English menu display is easy to manipulate. OLED display for better use in any environments.
For all metallic materials.
l Large capacity button battery providing long working time and standby time. Battery sign, display the current remaining capacity.
l Simple design and easy to use；
l The battery compartment cover is threaded to facilitate battery replacement。
[Technical Specification]
l Measuring range: 170~960 HLD
l Measuring direction: 360°
l Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS
l Display: dot matrix LCD 128×64 dots
l Battery: CR2450X1
l Using temperature: 0 ~ 40℃
l Storage temperature: -25 ~ 70℃
l Continuous working period: 30h
l Outline dimensions: 148 × 33 × 30mm
l Wight: about 95g
Comparison table
|
Model |
TH103D |
|
Hardness scale |
HL, HRC, HRB, HRA, HV, HB, HS |
|
Measuring range |
HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68),
HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100) |
|
Auto off |
3~5 Minutes without any operation |
|
Power |
CR2450 |
|
Display |
128 × 64 OLED |
|
Continuous Working time |
About 30h |
|
Overall dimensions |
148 × 33 × 30 mm |
|
Weight |
95g |
|
Material |
Hardness test method |
Impact device type |
|
D |
|
Steel and cast steel |
Rockwell |
HRC |
17.9～68.5 |
|
HRB |
59.6～99.6 |
|
HRA |
59.1～85.8 |
|
Brinell |
HB |
127～651 |
|
Vickers |
HV |
83～976 |
|
Shore |
HS |
32.2～99.5 |
|
Hammered steel |
Brinell |
HB |
143～650 |
|
Cold work tool steel |
Rockwell |
HRC |
20.4～67.1 |
|
Vickers |
HV |
80～898 |
|
Stainless steel |
Rockwell |
HRB |
46.5～101.7 |
|
Brinell |
HB |
85～655 |
|
Vickers |
HV |
85～802 |
|
Gray cast iron |
Rockwell |
HRC |
|
|
Brinell |
HB |
93～334 |
|
Vickers |
HV |
|
|
Nodular cast iron |
Rockwell |
HRC |
|
|
Brinell |
HB |
131～387 |
|
Vickers |
HV |
|
|
Cast aluminum alloys |
Brinell |
HB |
19～164 |
|
Rockwell |
HRB |
23.8～84.6 |
|
Brass(copper-zinc alloys) |
Brinell |
HB |
40～173 |
|
Rockwell |
HRB |
13.5～95.3 |
|
Bronze (copper-aluminum/copper-tin alloys) |
Brinell |
HB |
60～290 |
|
Wrought copper
alloys |
Brinell |
HB |
45～315 |
[Configuration]
|
|
NO. |
Item |
Quantity |
|
Standard Configuration |
1 |
Main uni. |
1 |
|
2 |
Small support ring |
1 |
|
3 |
Cleaning brush (I) |
1 |
|
4 |
|
|
|
